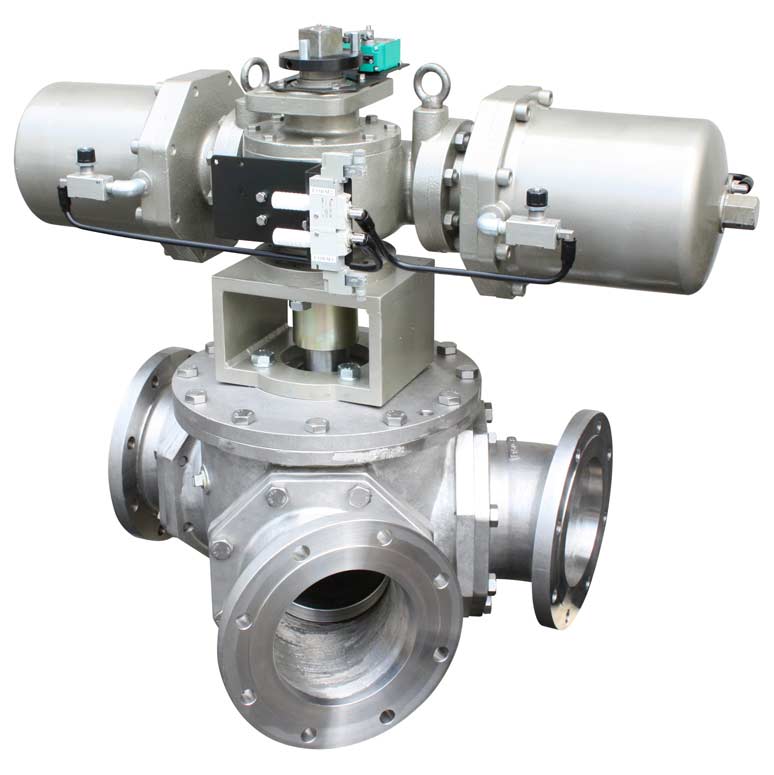

Pneumatically operated 3way Y shaped port type ball valve
This model has a wide angle of 135 degree to enable the passage of pigs or spheres to clean the pipe inside
| Product Code | YWN1307-L3 |
|---|---|
| Operation | Pneumatic operated(Double acting) |
| Body Material | Stainless steel(SCS13A) |
| Lining Material | - |
| Balldisk Material | SCS13A |
| Diaphragm/Seat Material | PTFE, Reinforced PTFE |
| Range Of Nominal Diameter | 25〜300 |
| End Connection | Flange(ANSI,JPI CL150) |
| Remarks | - |
Drawing Data Download
| Nominal Diameter | Actuator Code | Download | ||
|---|---|---|---|---|
| B | A | |||
| 1 | 25 | WN-1N | - | Drawing |
| 1･1/2 | 40 | WN-1N | - | Drawing |
| 1･1/2 | 40 | WN-2N | - | Drawing |
| 2 | 50 | WN-2N | - | Drawing |
| 2 | 50 | WN-3N | - | Drawing |
| 2･1/2 | 65 | WN-2N | - | Drawing |
| 2･1/2 | 65 | WN-3N | - | Drawing |
| 3 | 80 | WN-3N | - | Drawing |
| 3 | 80 | WN-4N | - | Drawing |
| 4 | 100 | WN-4N | - | Drawing |
| 4 | 100 | WN-5N | - | Drawing |
| 5 | 125 | WN-5N | - | Drawing |
| 6 | 150 | WN-5N | - | Drawing |
| 6 | 150 | WN-6N | - | Drawing |
| 8 | 200 | WN-6N | - | Drawing |
| 8 | 200 | WN-7N | - | Drawing |
| 10 | 250 | WN-7N | - | Drawing |
| 12 | 300 | WN-7N | - | Drawing |
